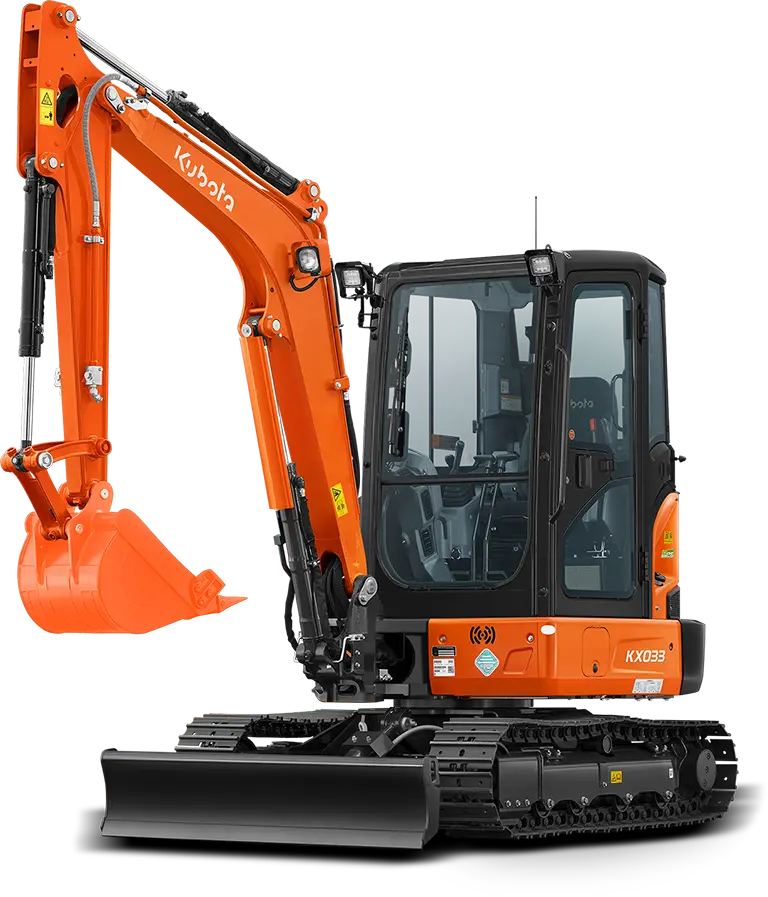

The Kubota KX033-4 offers customer versatility never seen before in the mid size 3.3t mini-excavator market. Powered by a reliable Kubota 20.5 kW (27.5 HP) engine, the Kubota KX033-4 features a zero tail swing and well balanced design, combining exceptional power and the versatility to tackle any job and working condition with ease.
GET ON ROAD PRICE
DOWNLOAD BROCHURE
CLEAN RUNNING KUBOTA ENGINE
Powerful and dependable, KX033-4’s diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, and exceptional fuel efficiency.
AUTO IDLING SYSTEM
Saves up to 10% on fuel by automatically reducing engine RPM to idle when the control levers are not in use.
ZERO TAIL SWING
Kubota’s zero-tail swing always keeps the tail of the mini excavator within track-width when swiveling, enabling operation in tight and confined spaces.
THE ONE PUMP LOAD SENSING SYSTEM
The system adjusts the hydraulic pressure automatically according to the load changes and reacts precisely to the movement of the control lever. Since the engine load is small, various latching and compounding operations can be undertaken while eliminating unnecessary loss of hydraulic flow.

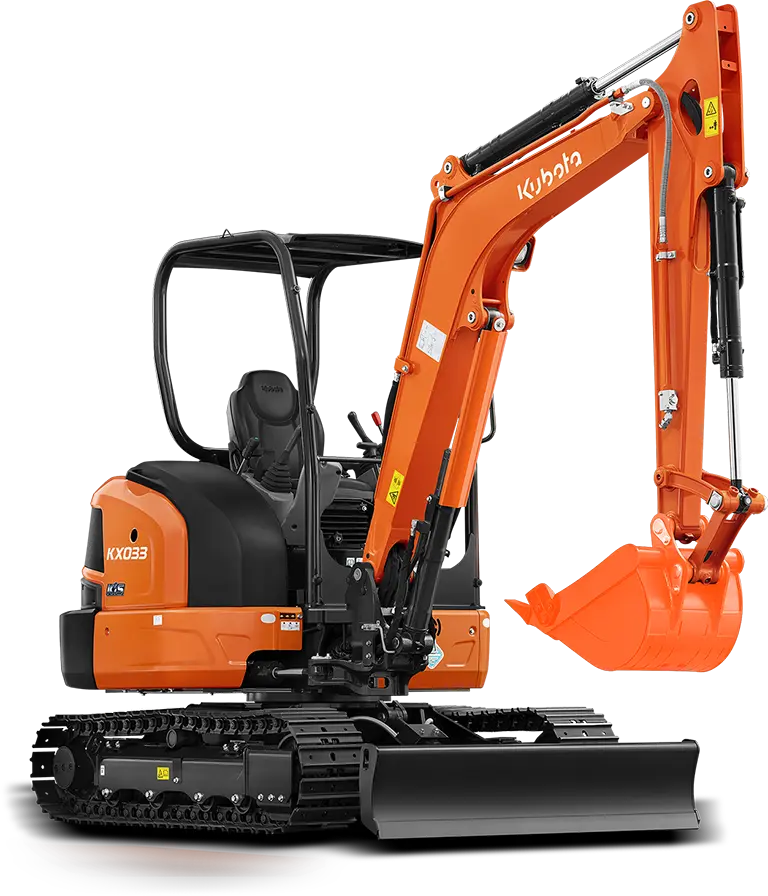

KUBOTA KX033-4
Engine Power20.5 kW (27.5 HP)
Engine Displacement1 828 cc
Loader Bucket Size0.10 cu m
Dump Height3 550 mm
Dig Depth3.10 m (3 110 mm)
Min. Turning Radius2 040 mm
OTHER SPECIFICATIONS
| Crawler Length | 2 100 mm |
| Tumbler Distance | 1 650 mm |
| Travel Speed (1st/2nd Gear) | 2.5 km/h, 4.5 km/h |
| Maximum Climbing Angle | 30° |
| Swing Speed | 9 rpm |
