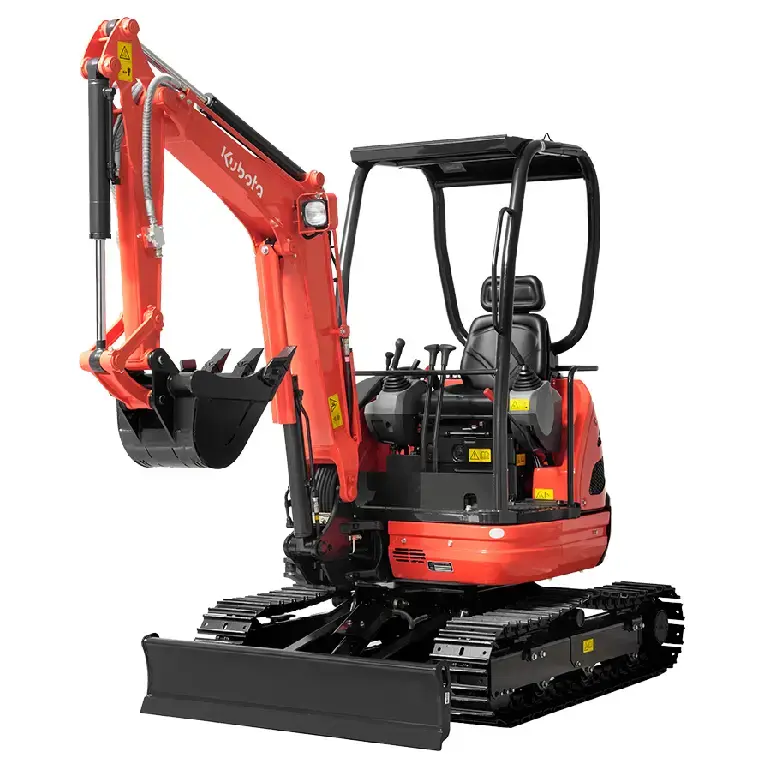

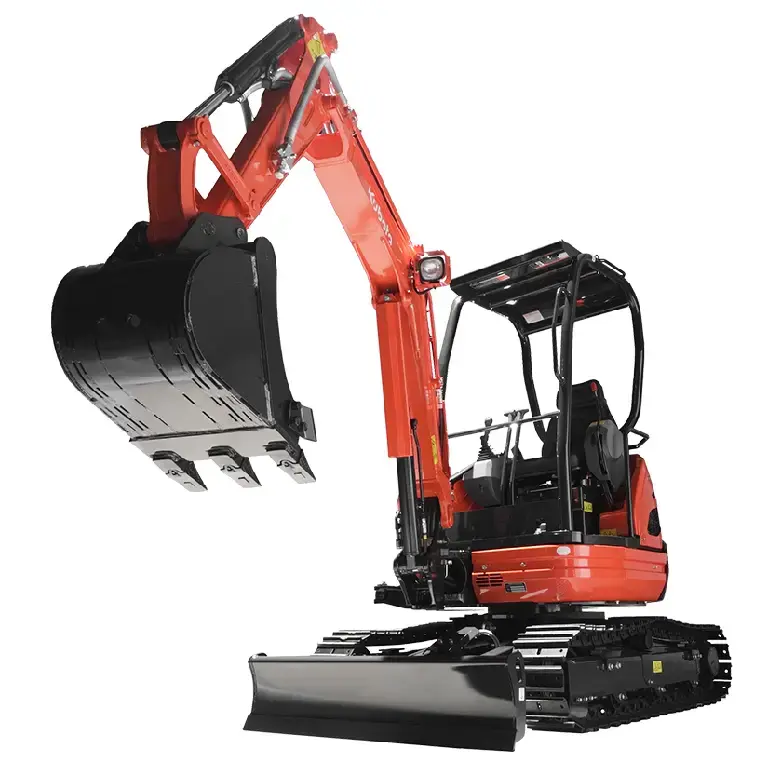

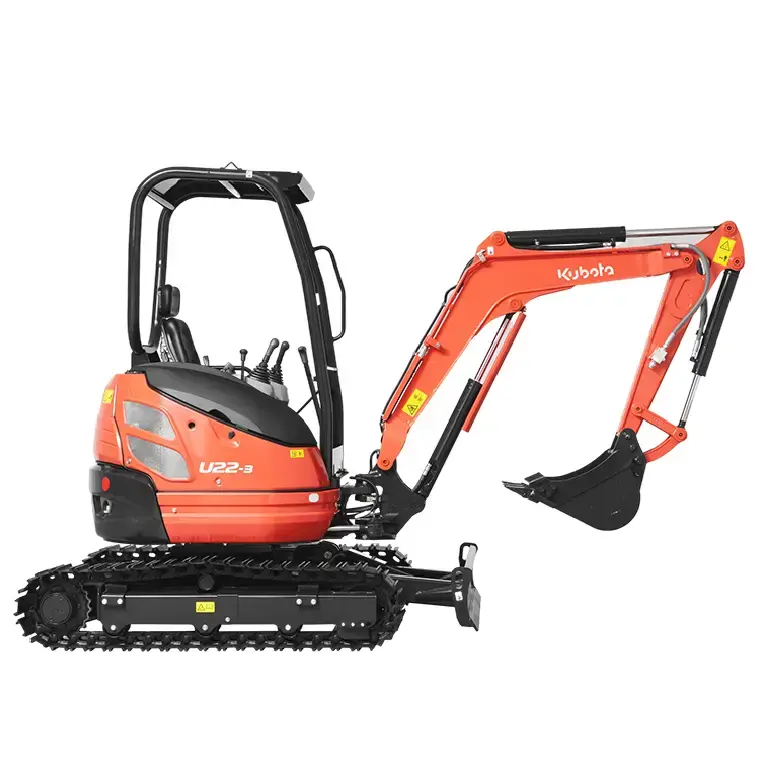

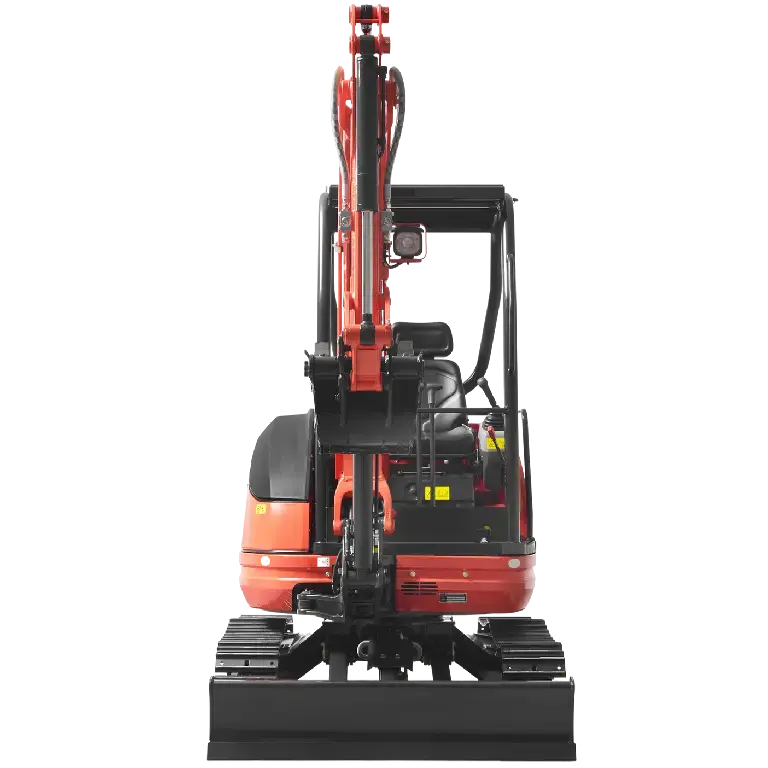

The KUBOTA U22-3 is a class leading, Zero tail swing mini-excavator offering more room than ever before. Powered by a renowned Kubota 14.2 kW (19.0 HP) Direct Injection Engine, the KUBOTA U22-3 combines superior Performance and Fuel Efficiency with outstanding versatility to tackle a wide variety of jobs and conditions.
New Generation Panel
The user-friendly digital panel features one-touch button operation to view the time, working hour and engine rpm. Warning lamp with code number on the display alerts you in case of emergency such as overheating, hydraulic problem or low battery. With easier access, simpler setting, easy-to-read indicator and alert, you're always aware of the excavator's functioning status.
X-Shaped Frame + Slanted Track Frame
Both components are designed to provide increased strength and durability, along with excellent stability. It also helps reduce stress on key components, contributing to a longer service.
Kubota U22-3
Other Specifications
| Crawler Length | 1 845 mm |
| Tumbler Distance | 1 450 mm |
| Travel Speed (1st/2nd Gear) | 2.1 km/h, 4.0 km/h |
| Maximum Climbing Angle | 30° |
| Swing Speed | 9.6 rpm |
