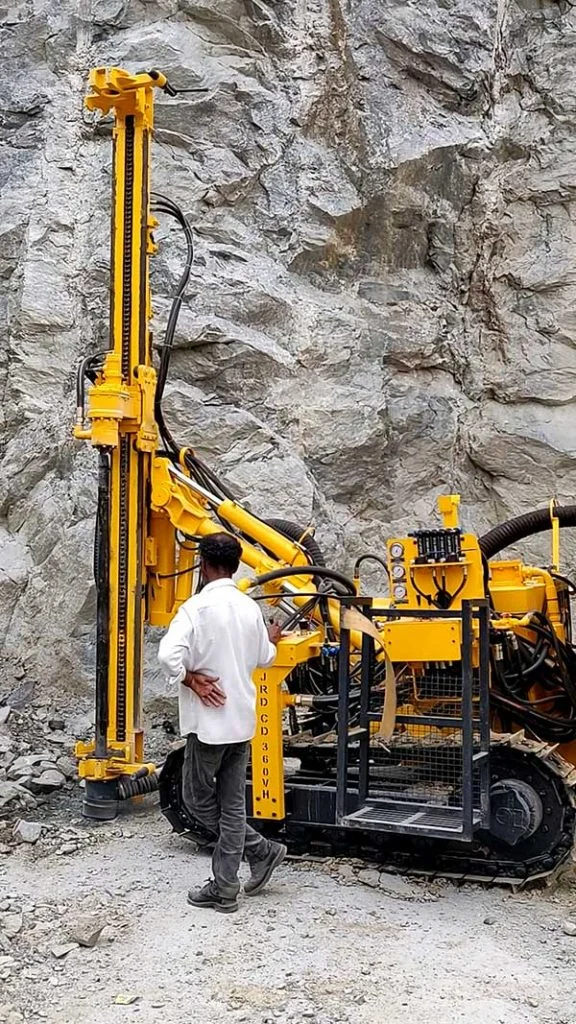

Hydraulic Crawler Drill CD-360VH

Crawler Drill JRD Model CD-360VH down-the-hole (DTH) specially designed for drilling Matching Lead holes for diamond wire cutting of Marble & Granite. CD-360VH offer the highest mobility equipped with powerful down-the-hole hammers and is designed for high-capacity rock drilling in Granite & Marble quarries for Block/Rock excavation. They match perfectly with 4" hammers, making the rigs uniquely productive and keeping fuel consumption and operating costs to a minimum and offer high penetration rates, reliability, and excellent fuel economy. CD-360VH Crawler Drill is a self-propelled crawler type drill, designed for drilling holes in vertical and horizontal planes. The Ruggedly constructed Track (Crawler) demonstrates effortless manoeuvrability on rough ground. Each track is driven by heavy duty hydraulic motor through planetary Gear reduction unit with built in braking system.

Special Features

• ✔ Rugged Constructions
• ✔ Stable drilling capabilities
• ✔ Heavy Duty Tow Hitch
• ✔ Track Oscillation through Hydraulic Cylinders
• ✔ Heavy Duty Boom

Technical Specifications

Mode of Drilling	Down the Hole Air Hammer
Hole Diameter	90mm ~ 120mm (3½" ~ 4¾")
Drill Pipe Diameter	76mm ( 3")
Drill Pipe Length	3mtrs. (10ft)
Drilling Depth (Vertical Position)	30mtrs. (100ft) under favorable drilling conditions
Drilling Depth (Horizontal Position)	20mtrs. (65ft) under favorable drilling conditions
Height of Hole	From Ground to Centre of Hole : 125mm
Rotary Head (Torque)	1850Nm
Speed	0~80rpm
Type of Feed	Chain Feed
Feed Force	28kN
Total Length (Feed)	4800mm
Travel Length	4200mm
Mounting	Crawler Mounting
Speed	2.5km/hr
Track Oscillation	±10°
Ground Clearance	260mm
Engine Output	48H.P@1500rpm
Make	Ashok Leyland
Dust Collector (optional)	Hydraulic Driven Dust Collector System, Filter Area 12m2, No.of Filter 4
Water Injection System	For Dust Suppression by Water injecting into Hammer Line
