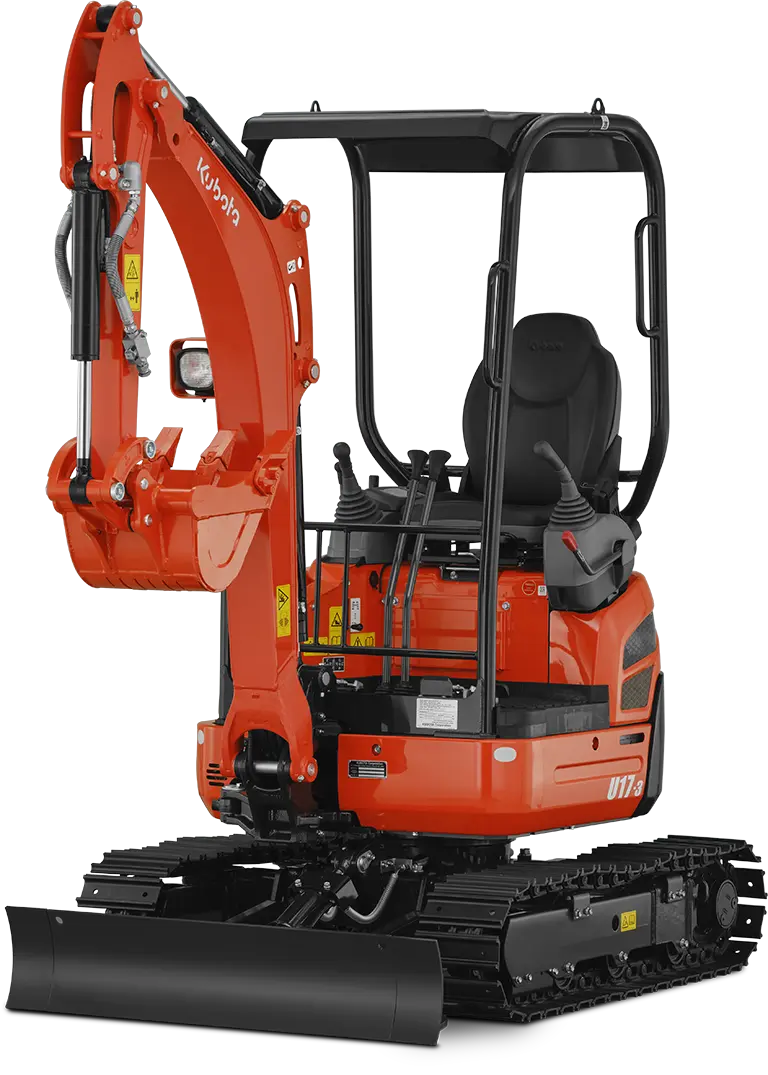

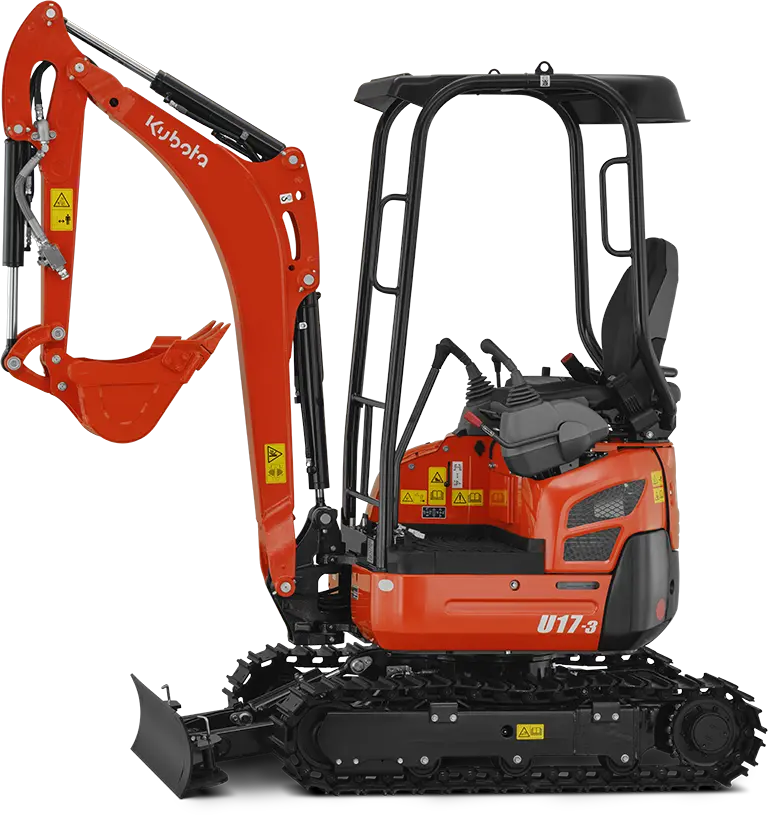

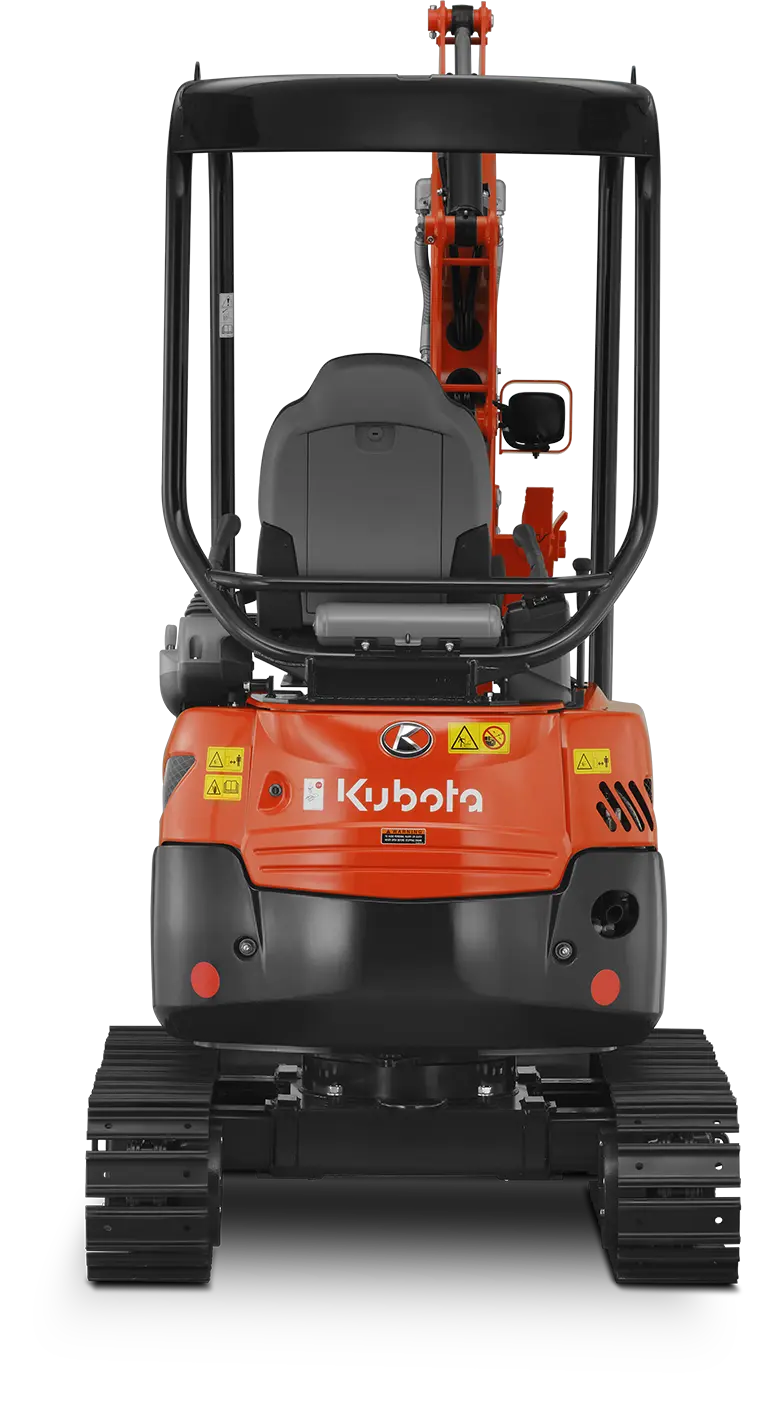

Kubota U17-3 Mini Excavator
The Kubota U17-3 is the perfect mini-excavator for tackling jobs in the tightest of spaces. Powered by Kubota's 12 kW (16.1 HP) engine, renowned worldwide for their outstanding reliability, the U17-3 delivers superior maneuverability and maximum digging performance. This mini-excavator delivers the power you need, the control you want and the smoothest performance when you need it most.
H.M.S Hydraulic System
Auxiliary hydraulic system accommodates various attachments, such as breaker and auger.
Variable Track Width
The U17-3 features a hydraulic track gauge that can be adjusted from 990 mm to 1,240 mm. With the touch of a single lever, you can reduce the track gauge to navigate narrow spaces or increase it to improve functionality.
Digital Panel
The user-friendly digital panel features one-touch button operation to view the time hour meter and tachometer. Warning lamps with code numbers on the display will alert you in case of emergencies such as overheating, hydraulic problems or low battery.
Wide Opening Bonnets
Wide-opening bonnets enable easy access to the engine oil gauge, coolant reserve tank and dual element air cleaner. It's easy to access the fuel filter, water separator, battery, radiator and oil coolant.
Kubota U17-3
Other Specifications
| Crawler Length | 1 585 mm |
| Tumbler Distance | 1 230 mm |
| Travel Speed (1st/2nd Gear) | 1.97 km/h, 3.9 km/h |
| Maximum Climbing Angle | 30° |
| Swing Speed | 9.1 rpm |
| Operating Weight | 1 650 kg |
| Bucket Capacity | 0.036 cu m |
| Max. Digging Reach | 3 620 mm |
